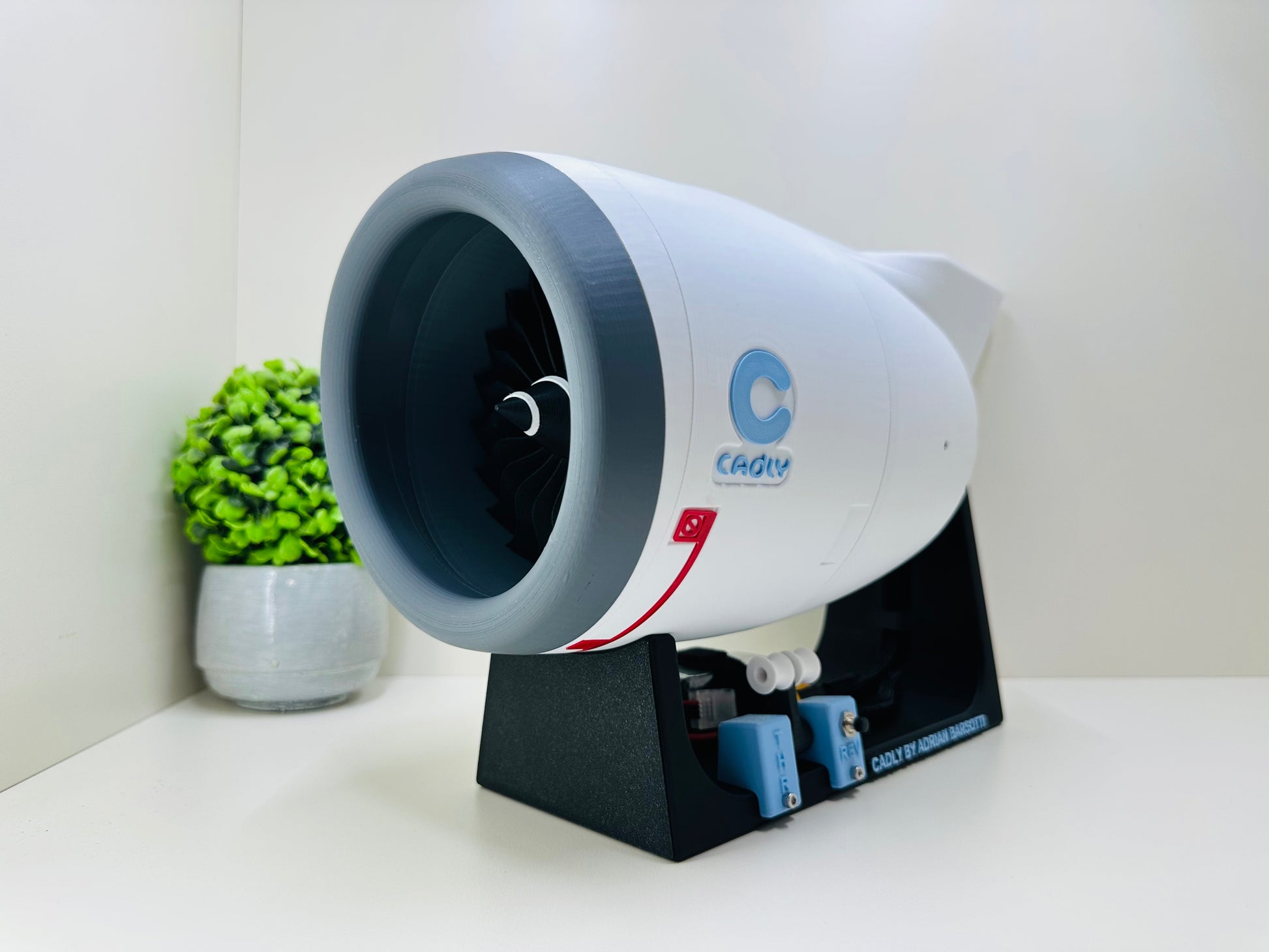

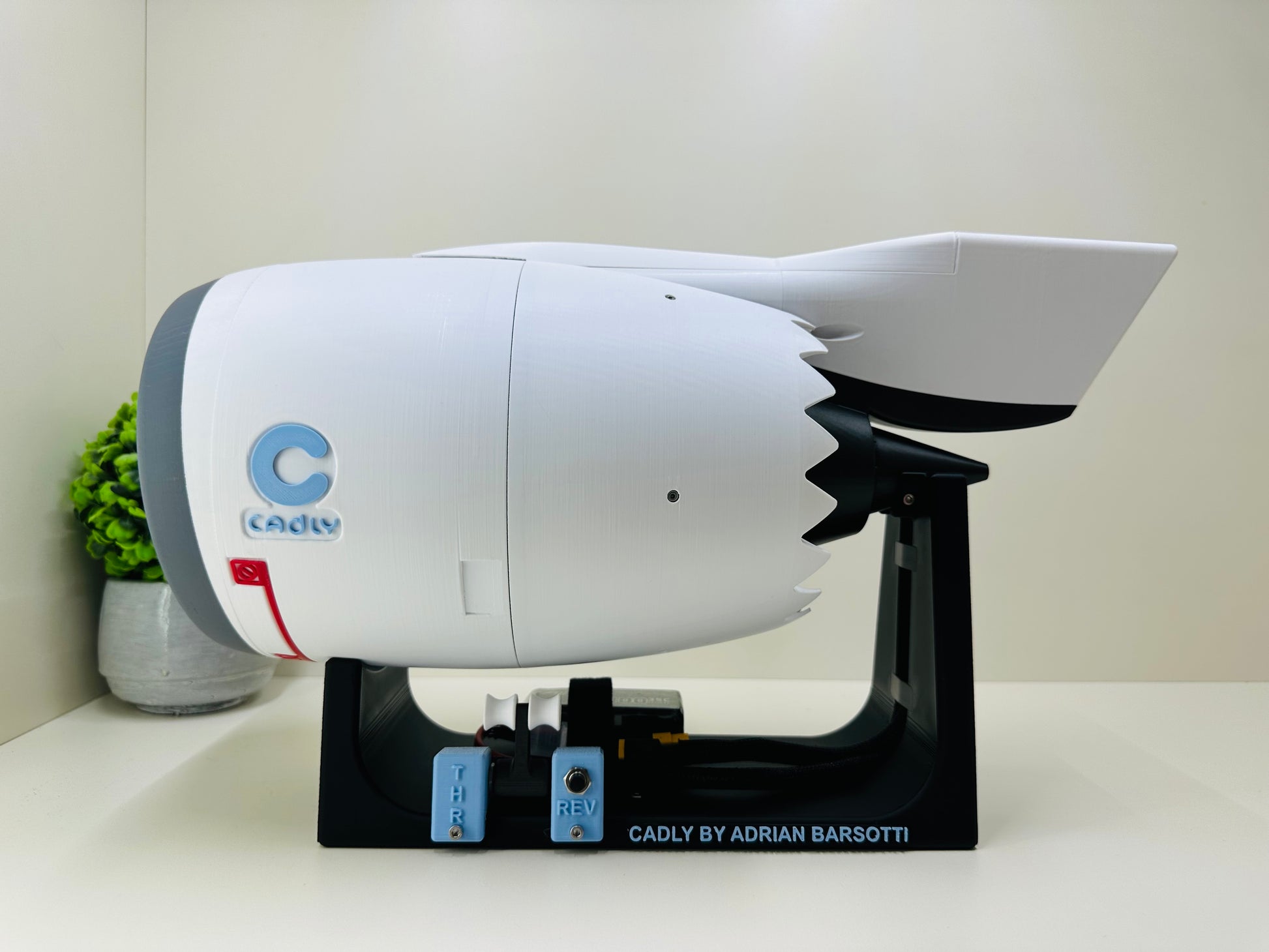

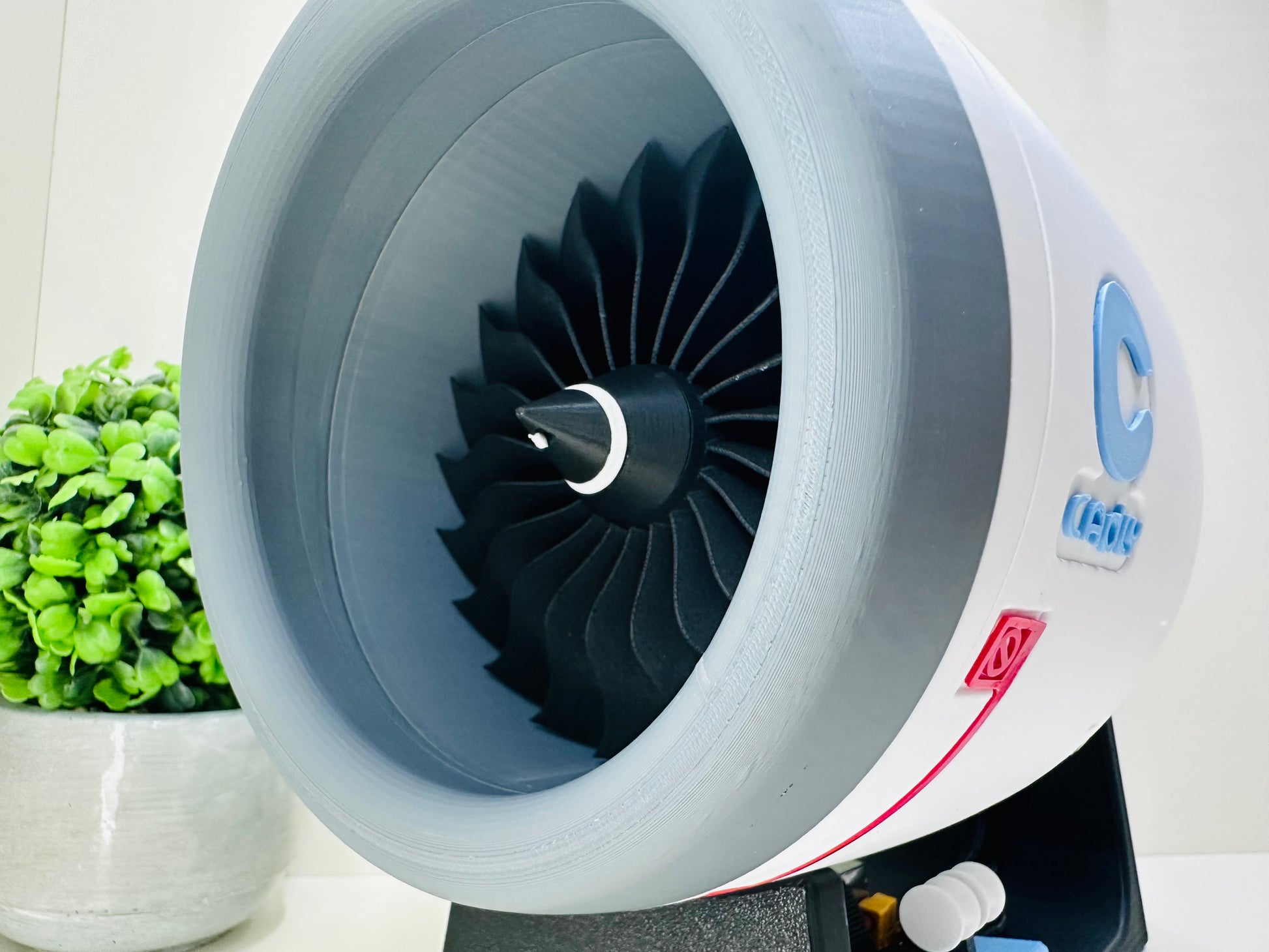

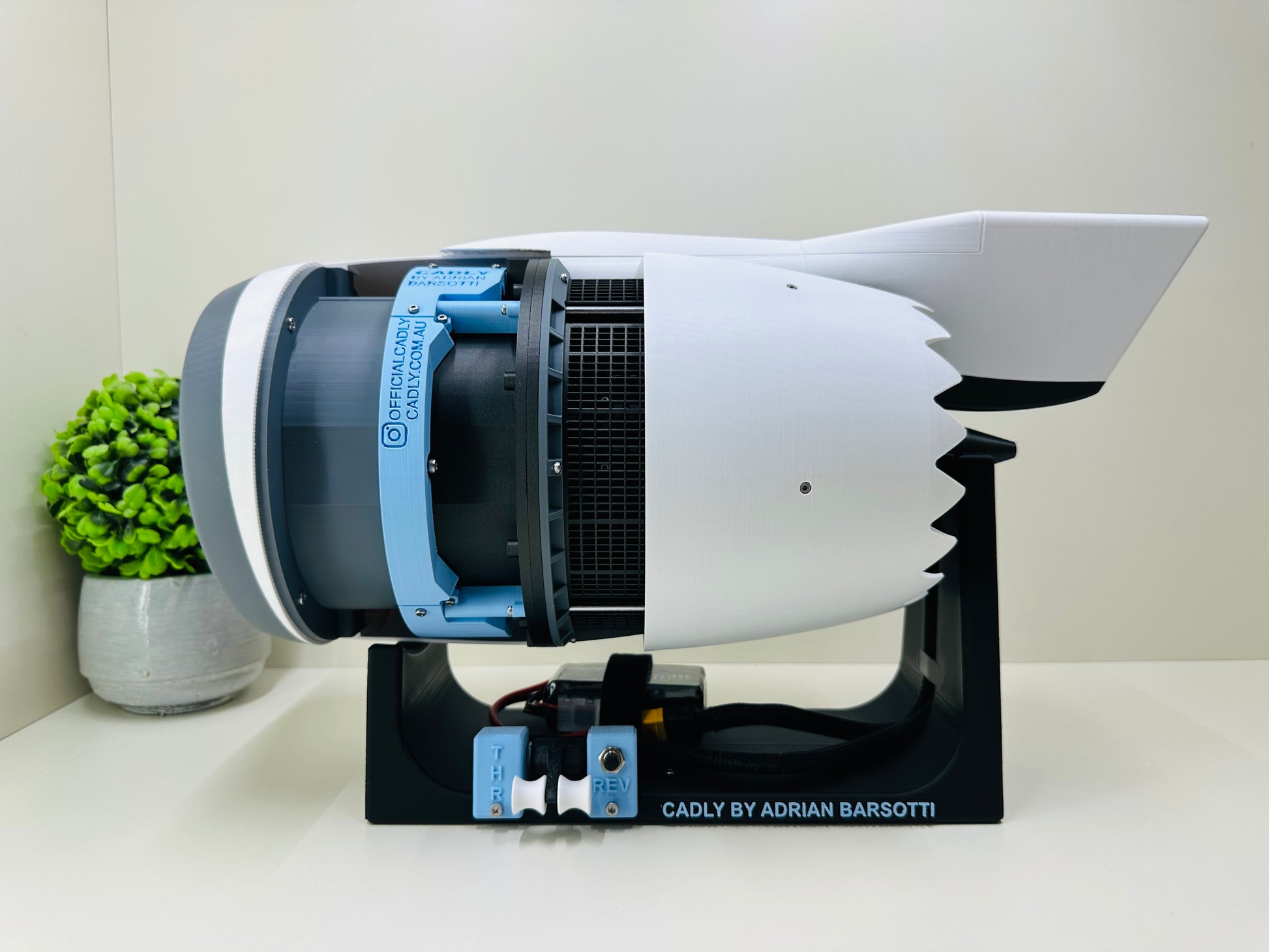

Electric TurboFan With Functional Reverse Thrusting

Electric TurboFan With Functional Reverse Thrusting

  • 300+
  • 4.9
  • Difficulty: Level 6
Regular price $50.00 AUD
Regular price Sale price $50.00 AUD
Sale Sold out
Choose an option

TURBOFAN BUILD GUIDE v1.9

View full details
feature-item-1
Printing Time
40hrs (X1C, P1S)
feature-item-2
Minimum Plate Size
250x210x200mm
feature-item-3
Material
PLA
feature-item-4
Weight
2.0Kg
feature-item-5
Soldering
Yes

Functional Reverse Thrusting.

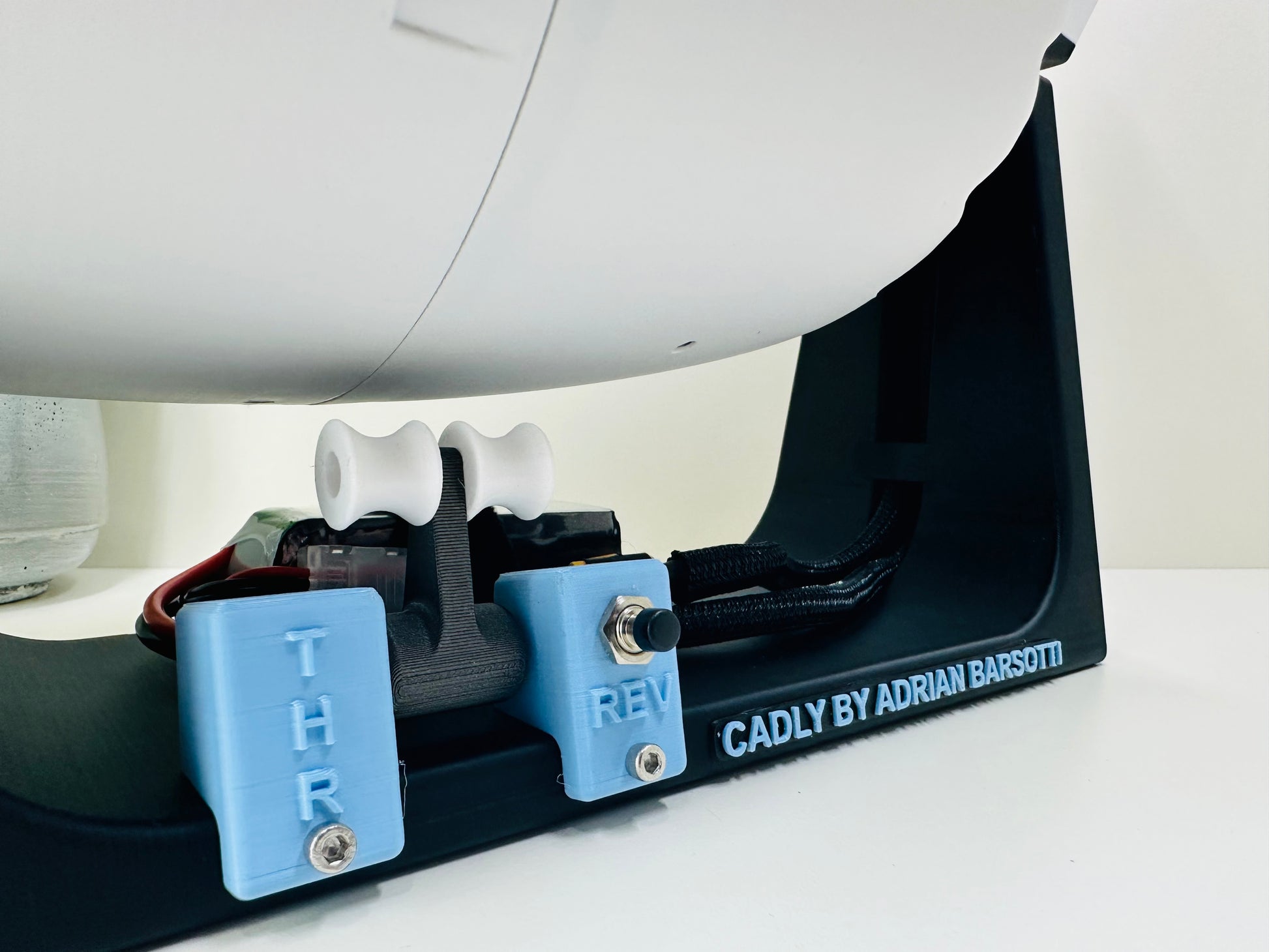

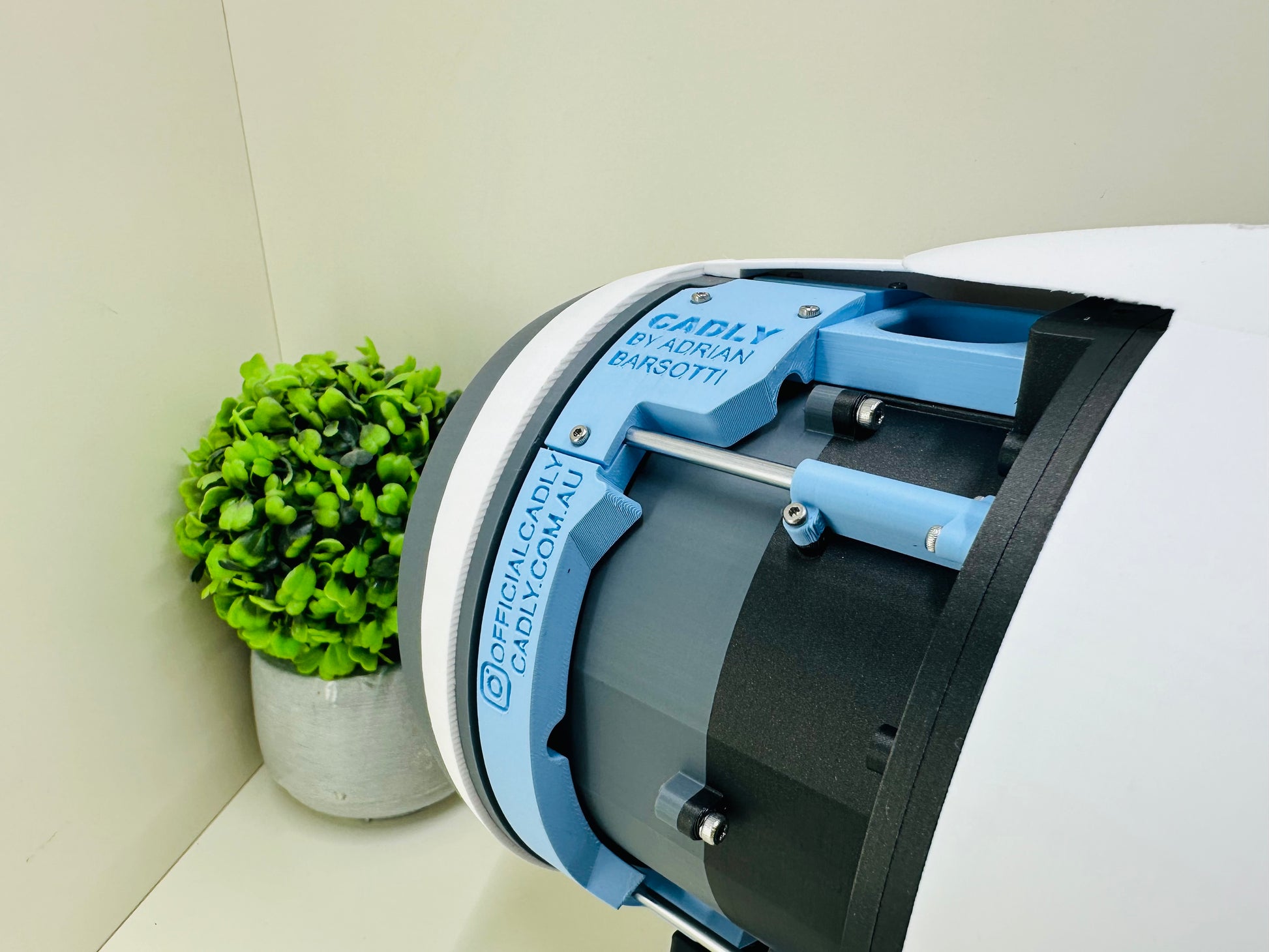

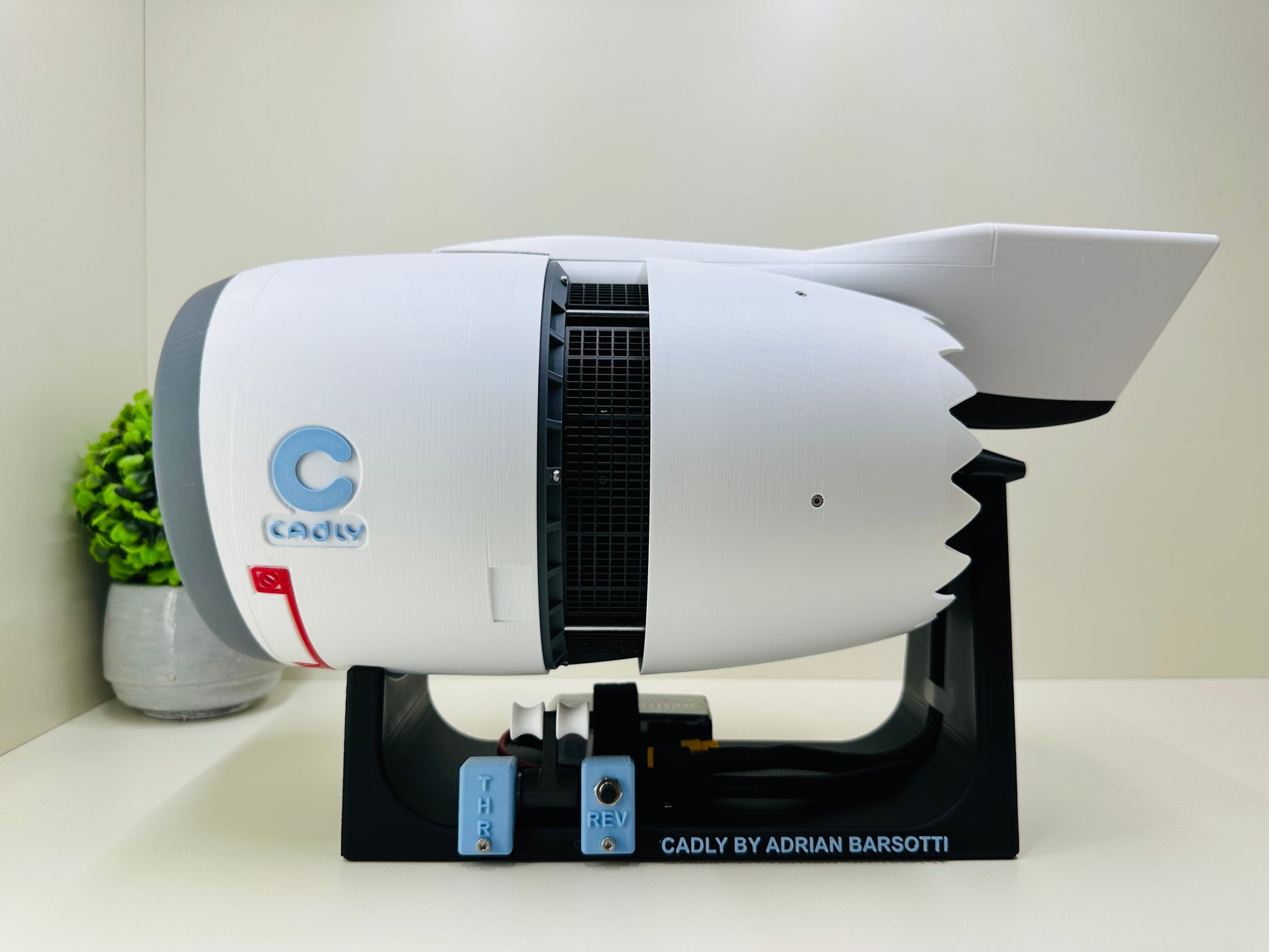

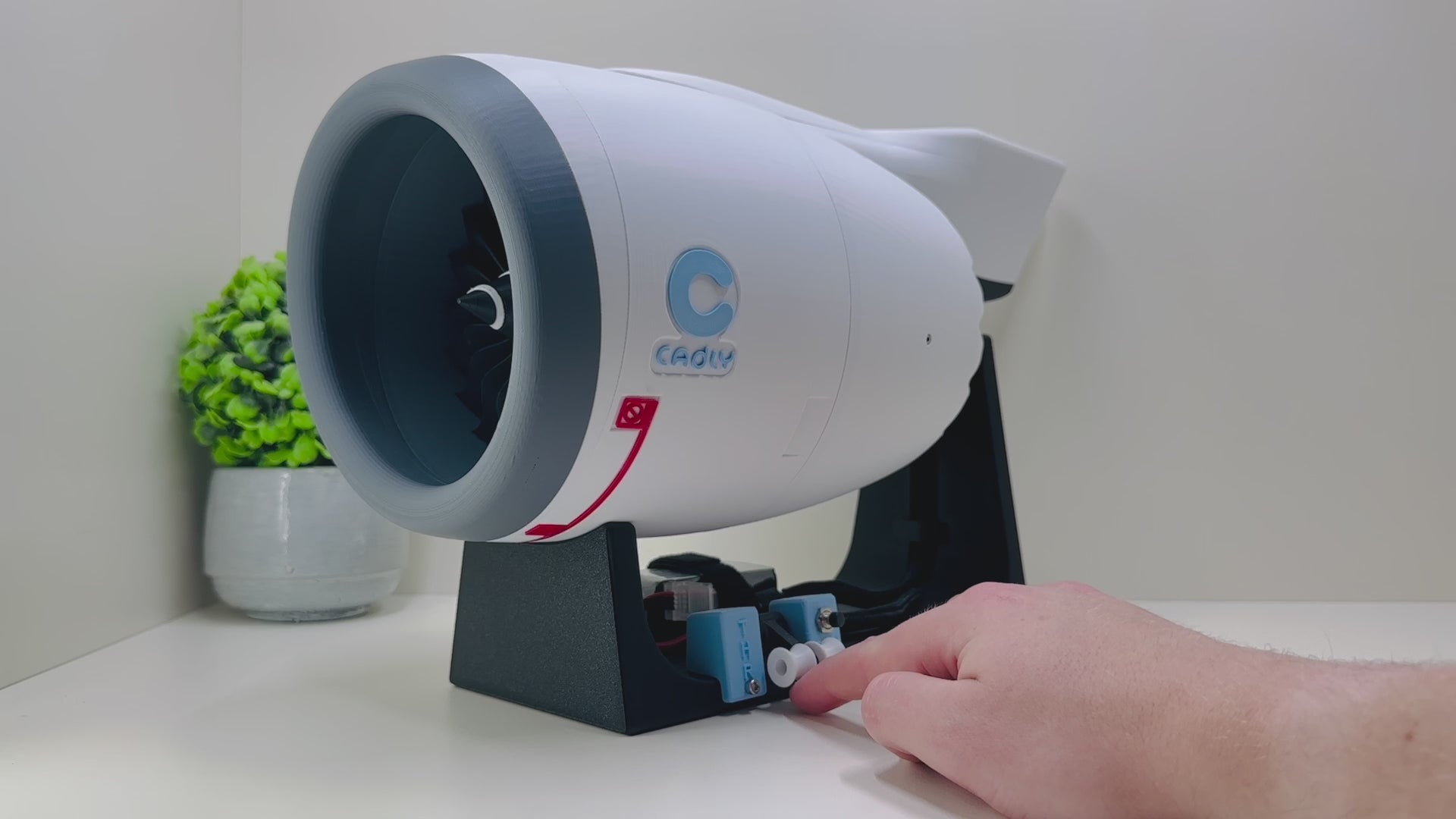

By activating the REV pushbutton, a MG996R Servo acts as an actuator making the reverse thrust functional by opening and closing the internal blocker doors redirecting the thrust in the opposite direction!

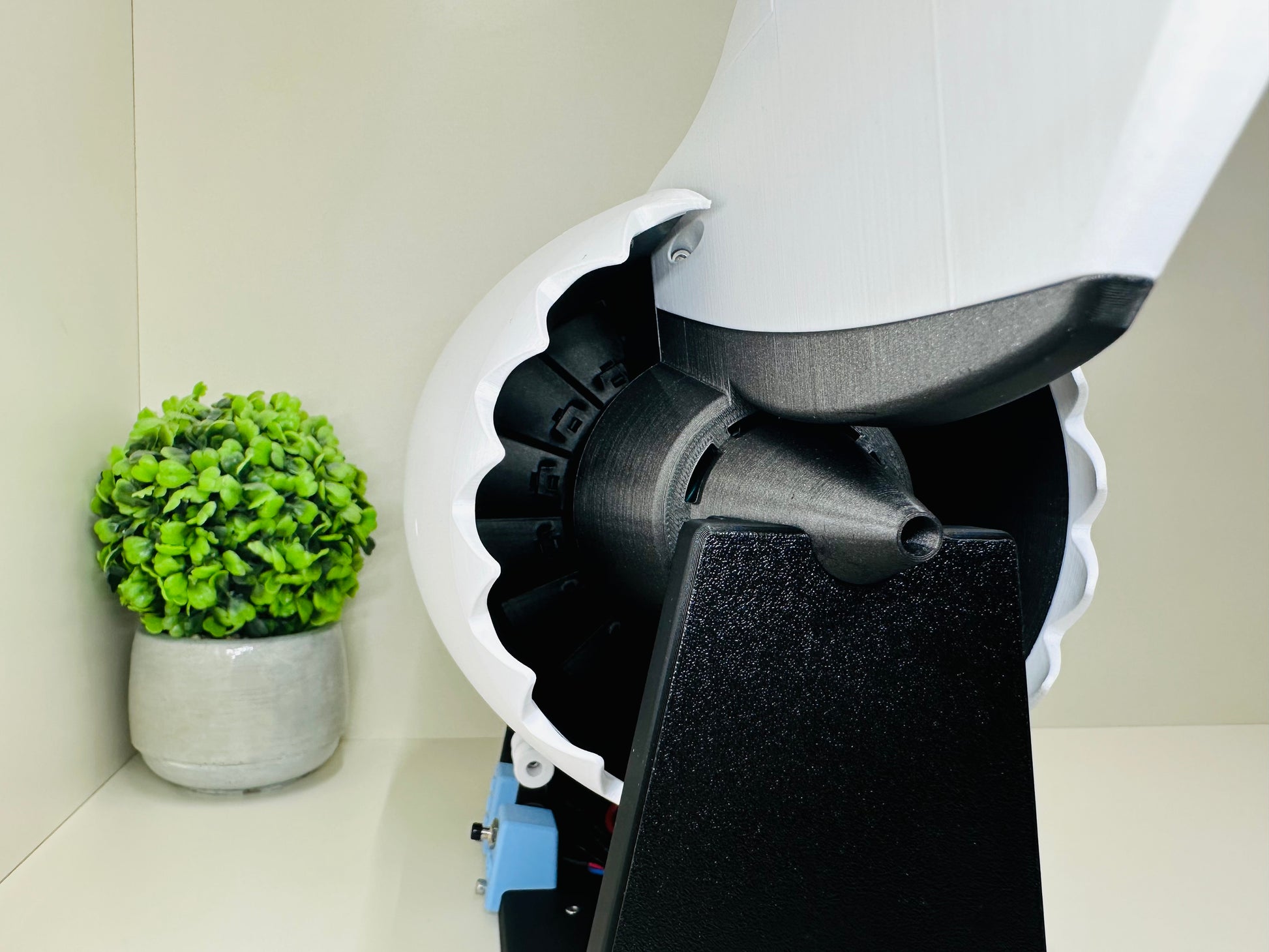

The internal blocker doors were designed to deflect the bypass air redirecting it towards the Turbofan.

By activating the REV pushbutton, a MG996R Servo acts as an actuator making the reverse thrust functional by opening and closing the internal blocker doors redirecting the thrust in the opposite direction!

The internal blocker doors were designed to deflect the bypass air redirecting it towards the Turbofan.

Maximum Thrust.

Using a MG996R Servo, the Reverse Thrust Actuator is functional by opening and closing the internal blocker doors redirecting the thrust in the opposite direction!

Recommended Hardware.

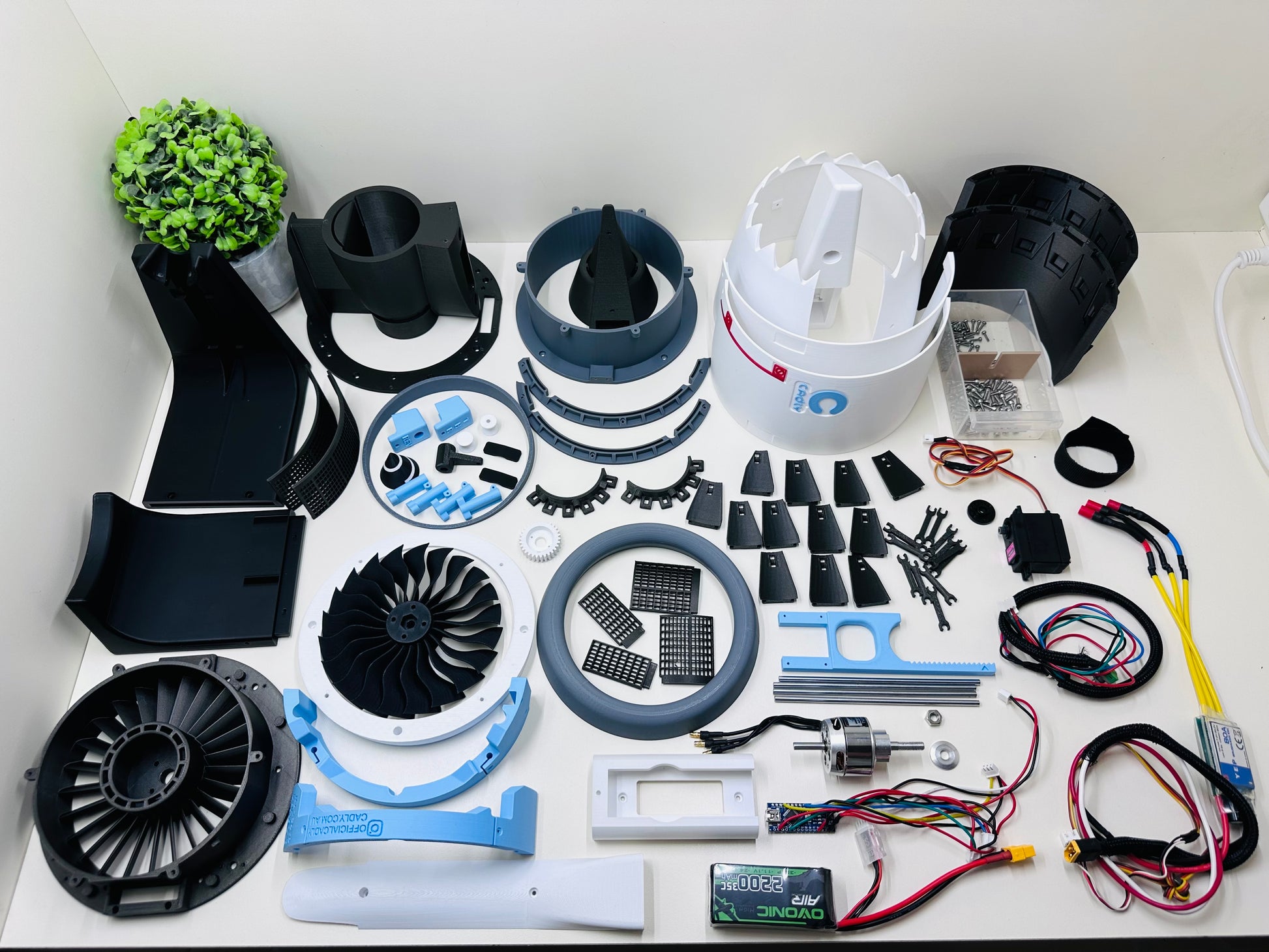

Required Hardware

 Click on the links below for the recommended hardware used for this build!

Hardware

Quantity

M3x8 Hex Socket Cap Screws 52
M2x8 Hex Socket Cap Screws 57
M2x5 Hex Socket Cap Screws 2
4mm Linear Rods Length Required: 140mm 4
MG996R Servo with Disc Attachment 1
10k Linear Potentiometer (7mm Mounting Hole) 1
Momentary Push Button (7mm Mounting Hole) 1
Arduino Nano 1
ESC with 5V BEC 1

3536 Brushless Motor with 25mm Hole Spacing - Usually Includes an M6 threaded Attachment with nut. This is used to mount the 130mm Fan!

Parts 46. & 47. have 19mm x 16mm hole spacing for other brushless motor options - See Instruction manual for more information!

1
LiPo Battery 1
20mm Velcro Straps 2
6mm Braided Wire Wrap 1
JST Male and Female Connectors 3x Pairs of 3-Pin & 1x Pair of 2-Pin
22awg Wire (Approx. 500mm from potentiometer to the Arduino)
  • Functional Reverse Thrusting

    Using functional internal blocker doors to redirect air flow.
  • Step-By-Step Build Guide

    Follow the photographic build guide to create your Turbofan.
  • High Thrust Bypass Fan

    Utilising a brushless motor generating max thrust.
  • High Quality 3D Model

    Exported at the highest resolution for ultimate print quality.
  • Educational

    Perfect for Aviation Engineering with functional aspects resembling real-life engines.
