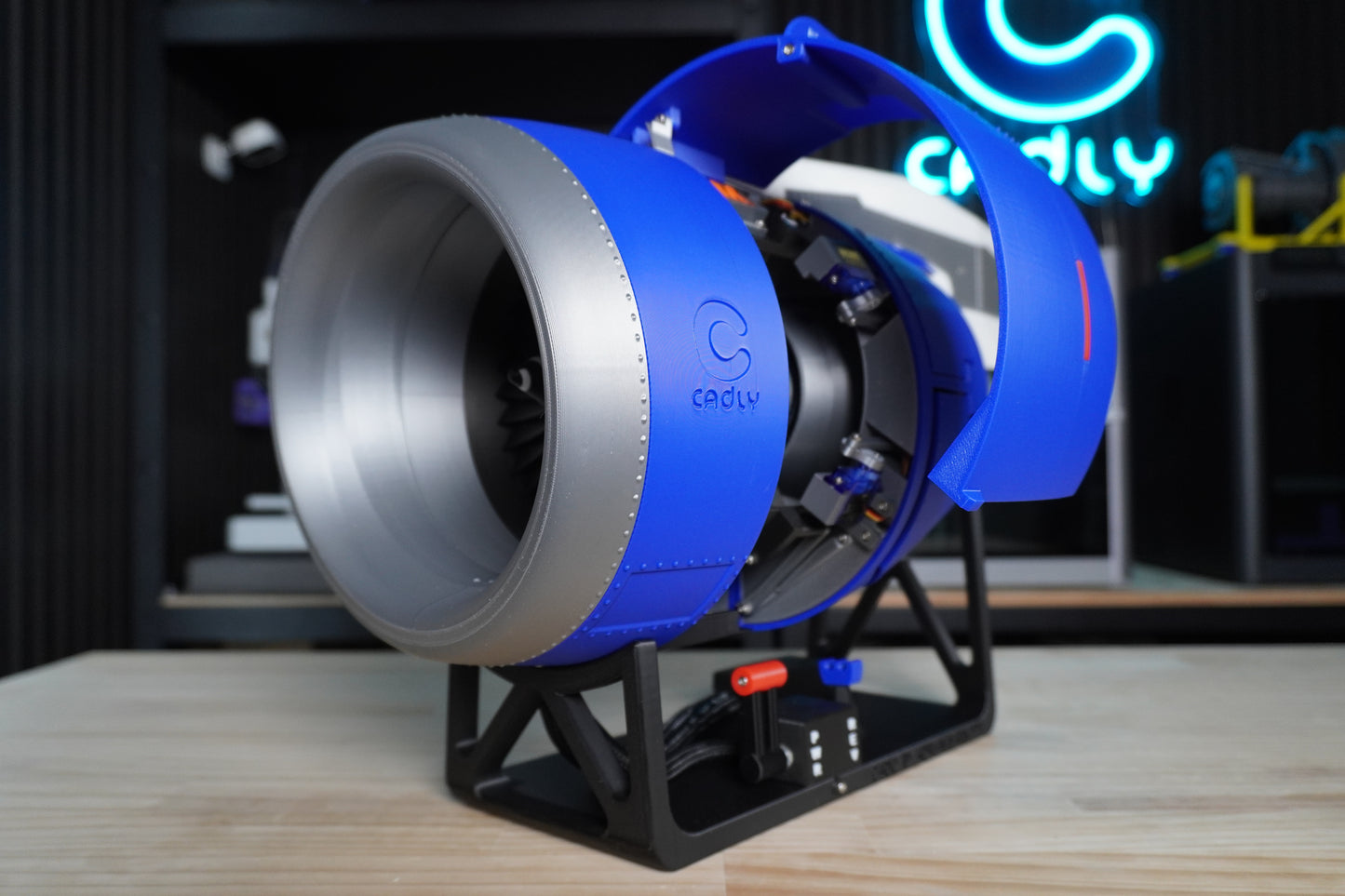

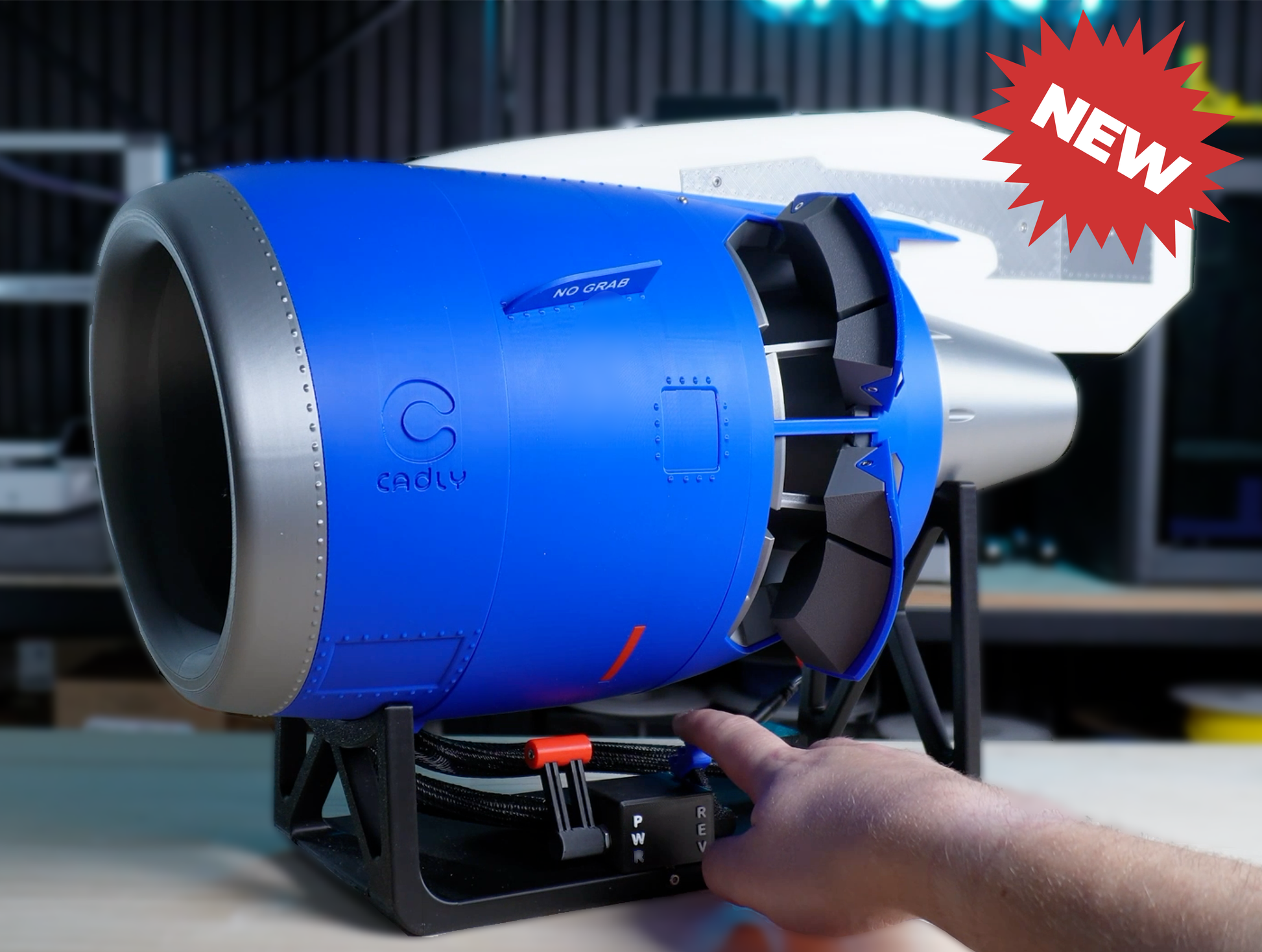

Electric Turbo Fan with Pivoting-Door Reverse Thrust
Electric Turbo Fan with Pivoting-Door Reverse Thrust
104
- 5.0
- Difficulty: Level 8
What's Included when you purchase?
Couldn't load pickup availability
Turbo Fan with Pivoting-Door Thrust Reversing Build Guide v1.1.4→
Seriously Detailed.

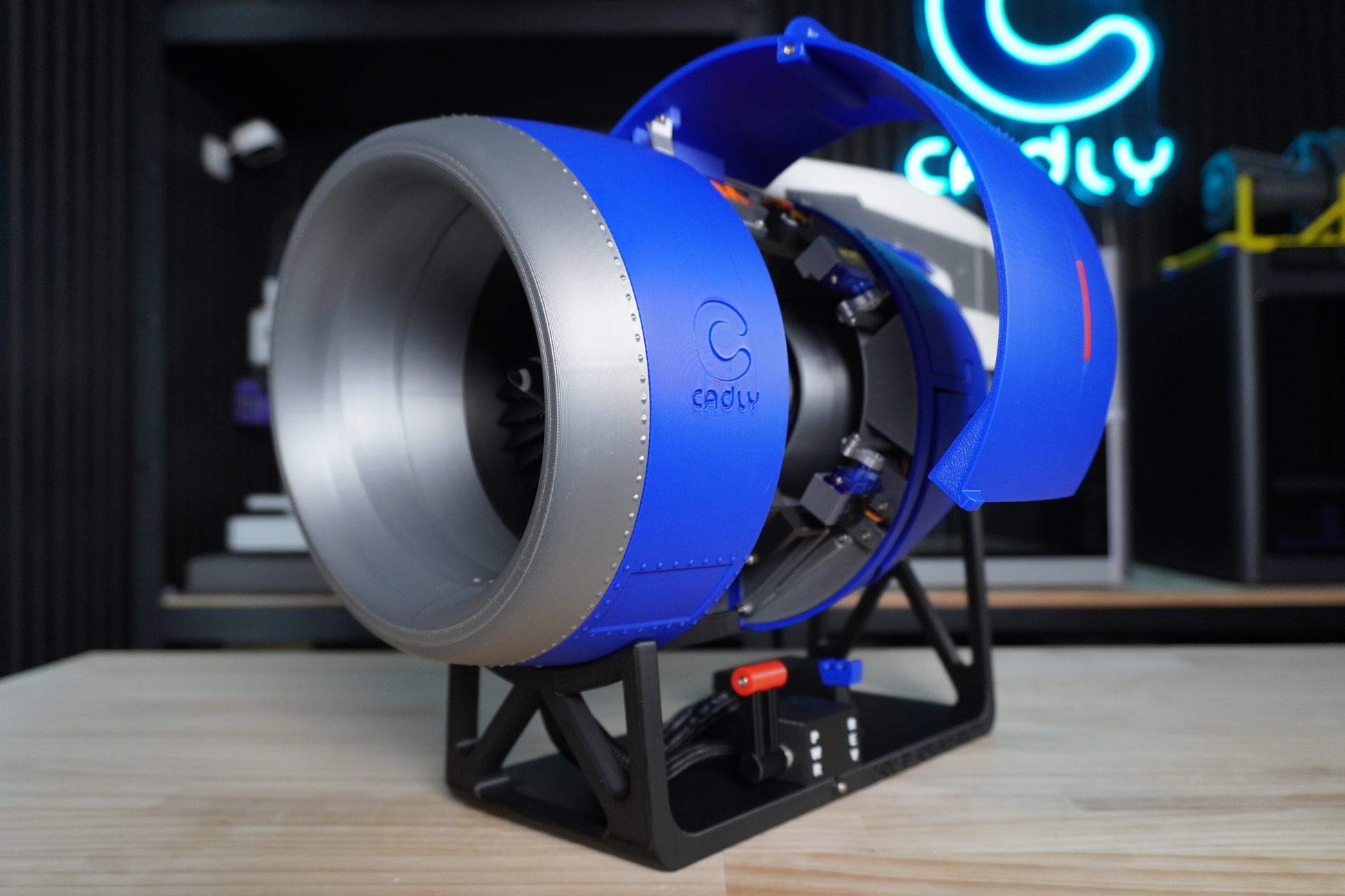

Pivoting-Door Thrust Reversers.
Utilising 2 sets of micro servos, you can control the thrust reverser pivot doors.
Cowlings.

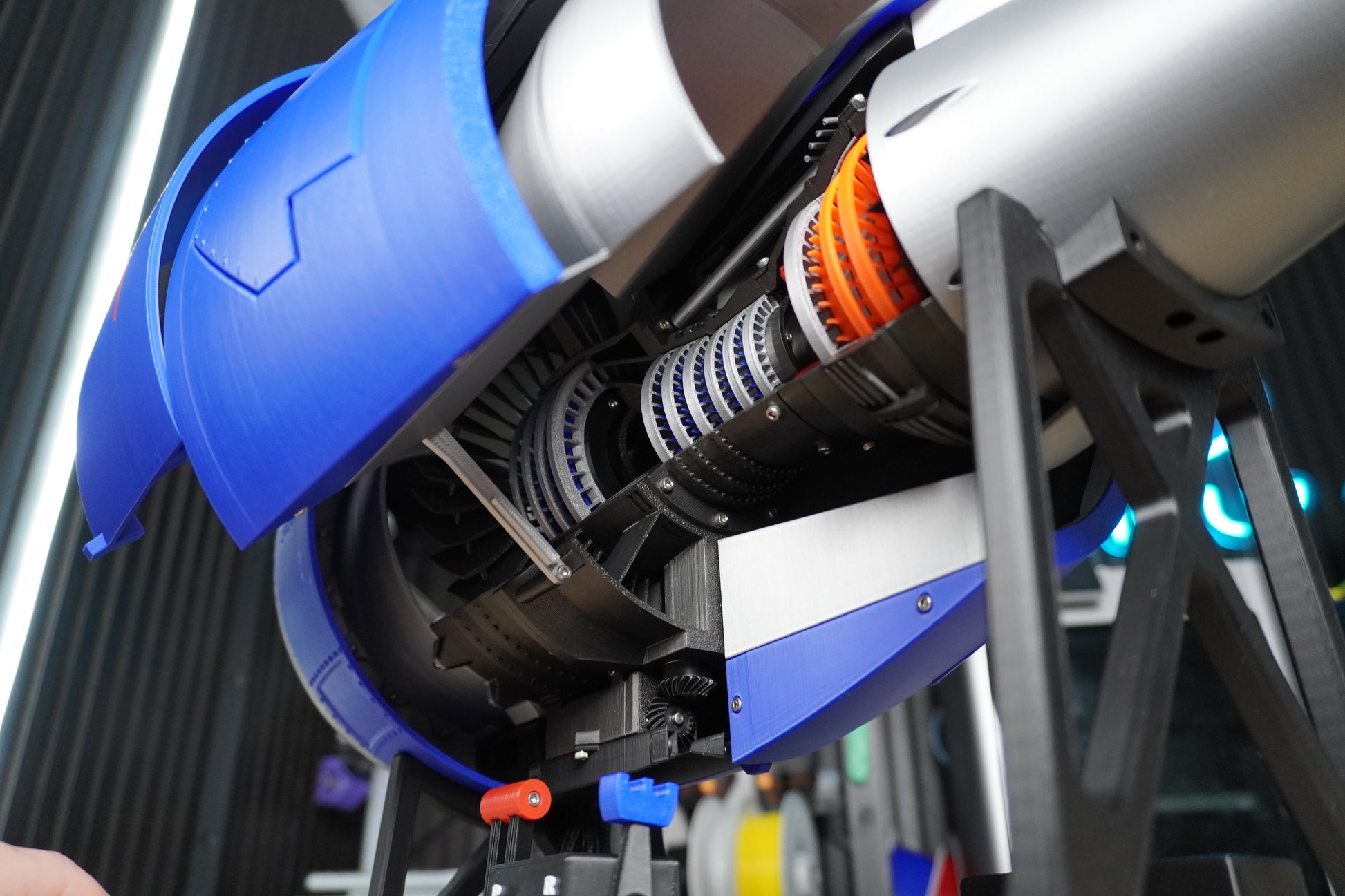

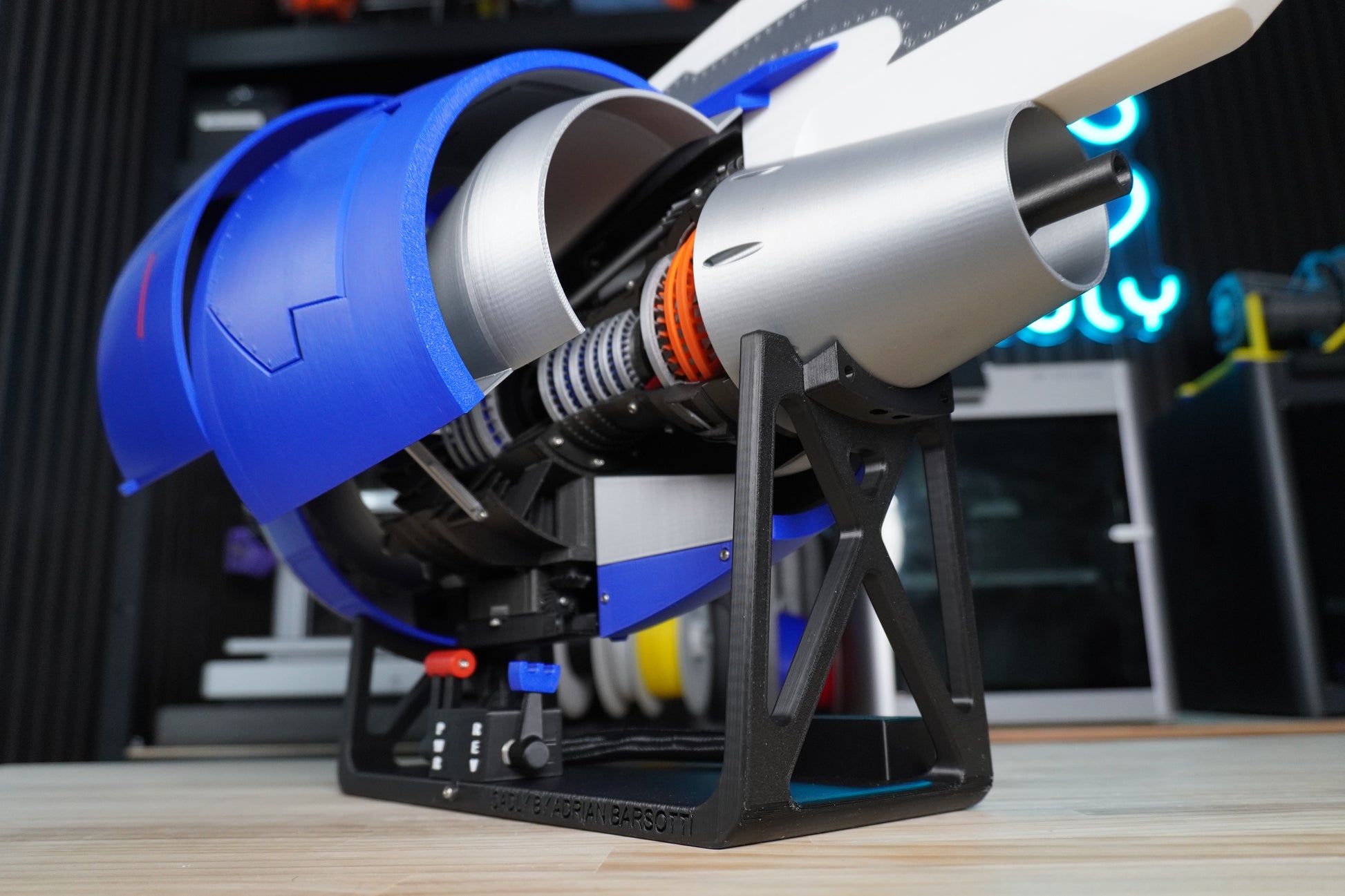

Lift the C-Duct to reveal the compressors and turbines.

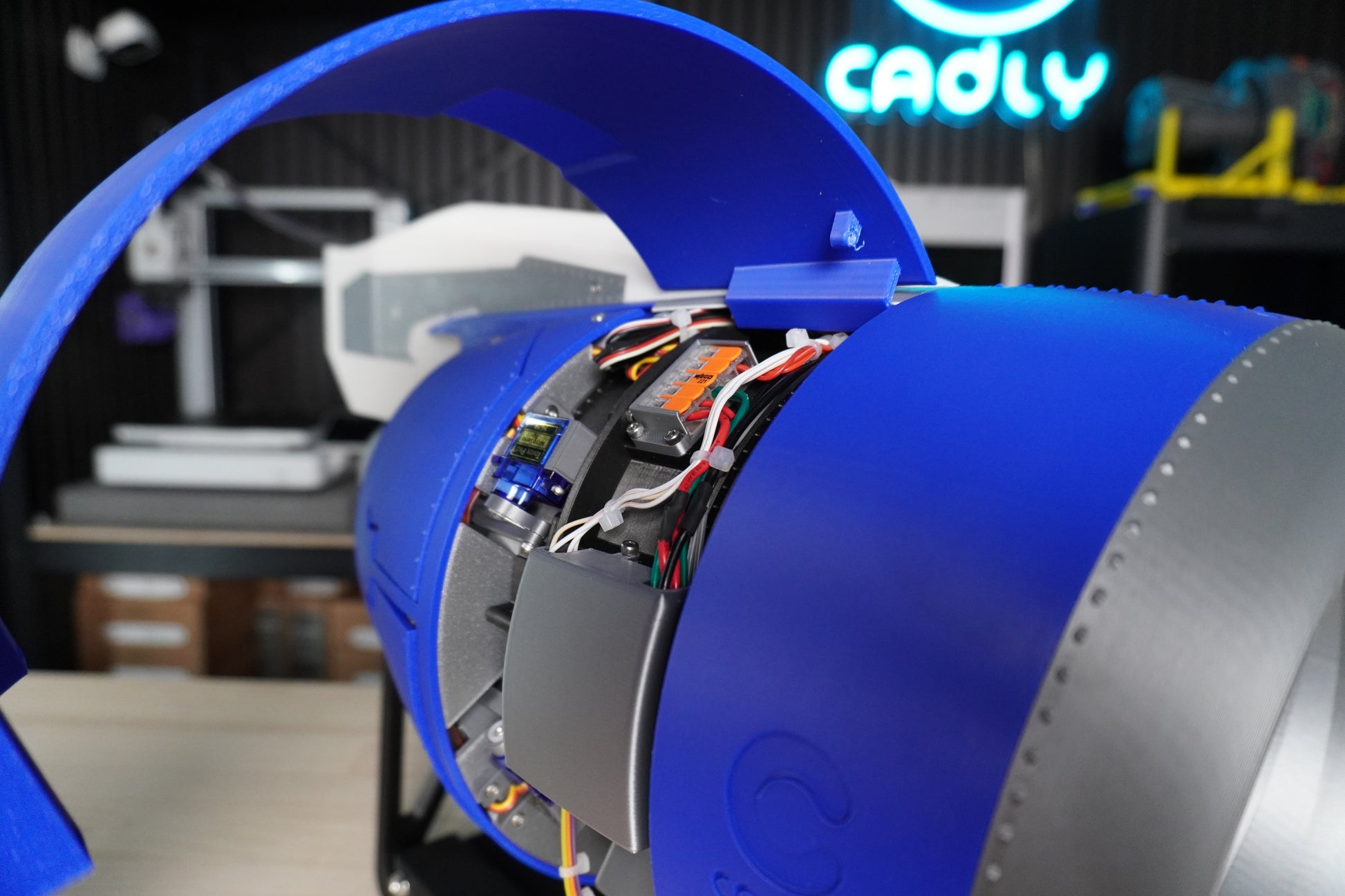

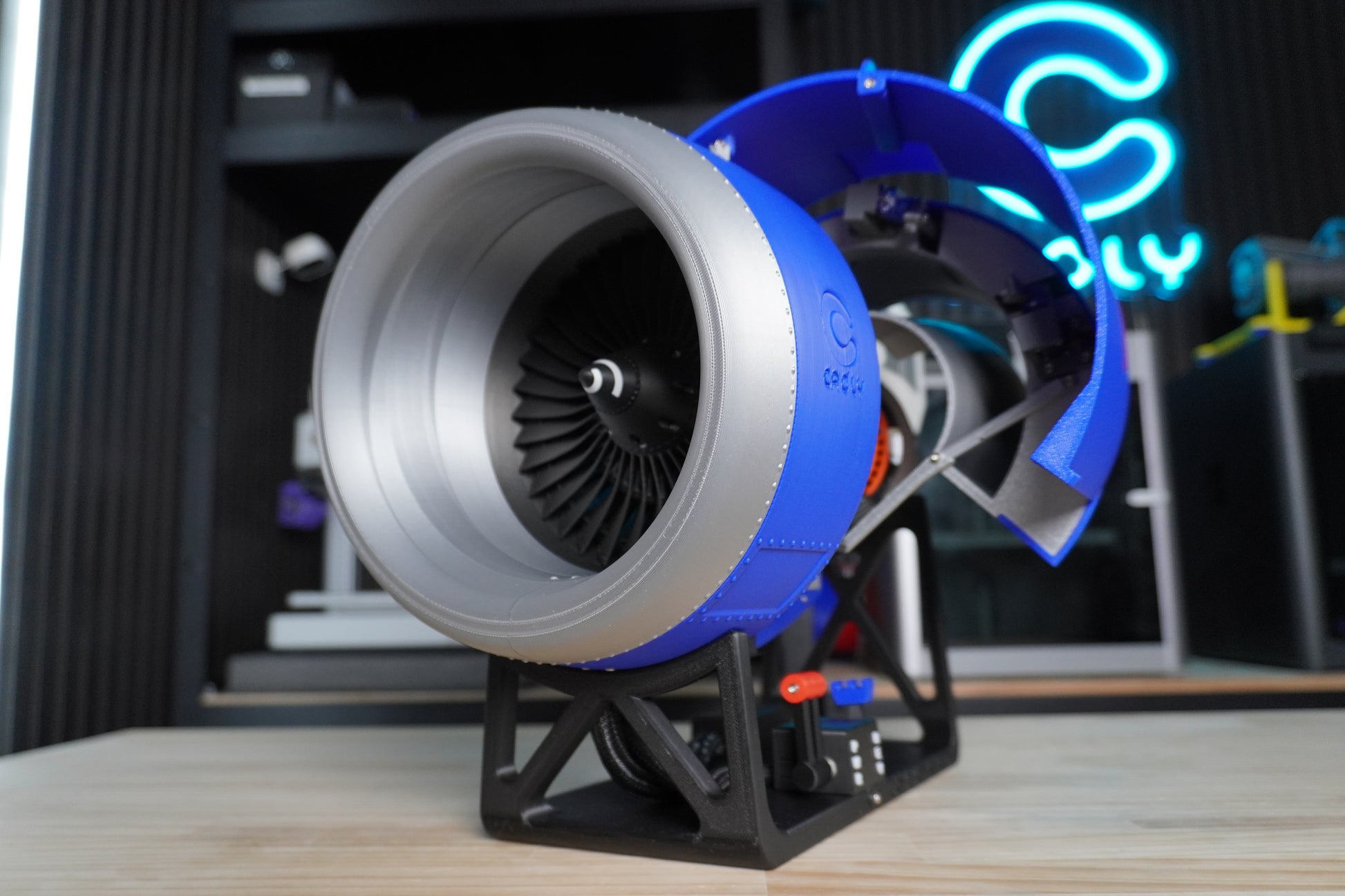

Lift the fan cowling to reveal the electronics and core.

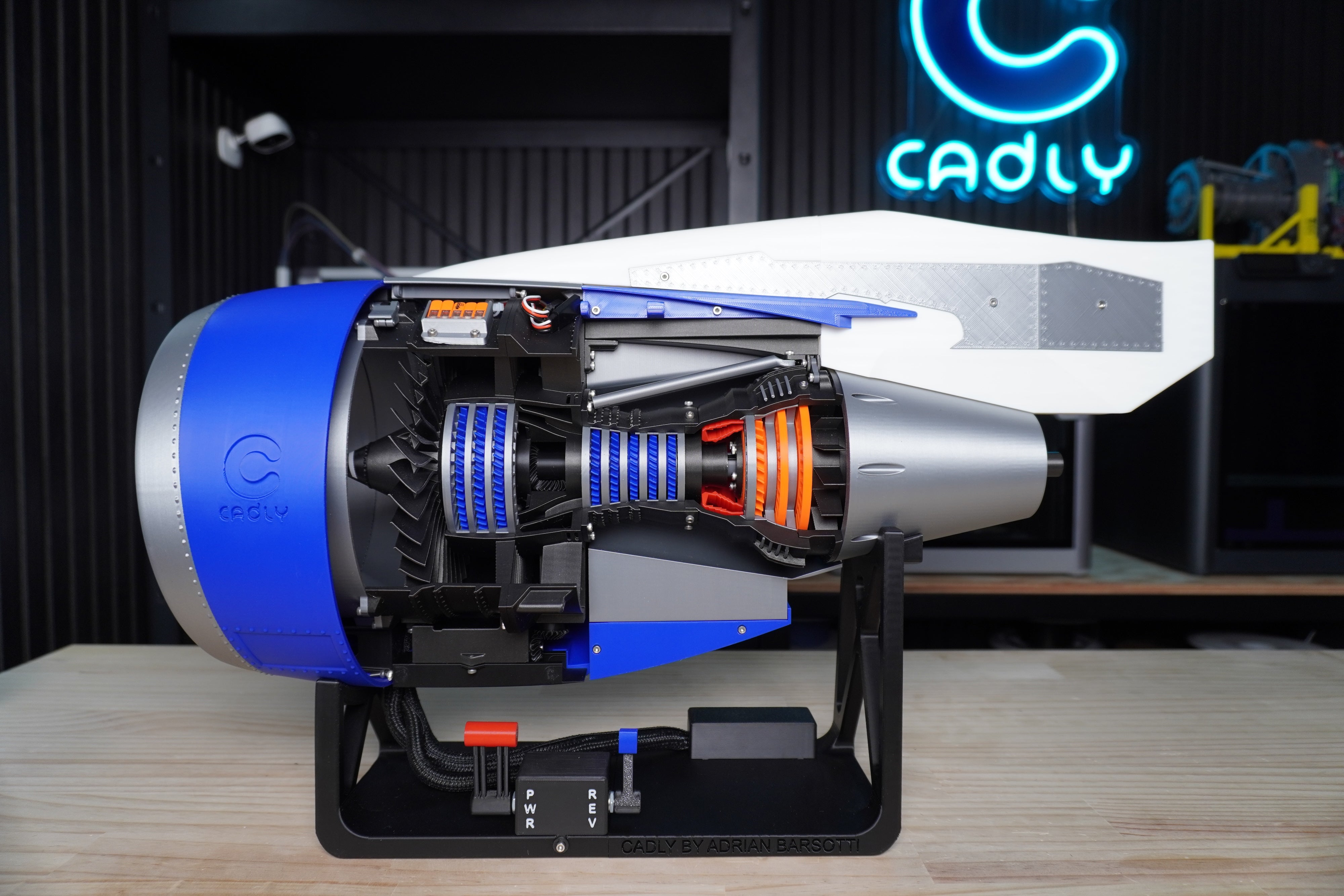

Visualise Compression & Combustion.
Take a look at the 5-stage compressor housing, combustion chamber, and 3-stage high pressure turbines through the viewing port.
Assembly made effortless.
Our build guides are free - check them out before you buy to see their assembly process!
Containing information on recommended hardware, circuit diagrams, and part orientation for printing.
With over 180+ steps, this Turbo Fan model is our most complex build!
2 in 1.
Print Model A or Model B! Files are included for both.
What's included when you purchase?
-
FILES ONLY
- 3 Print Profiles
- .3MF Individual Files.
- Step-by-step Build Guide.

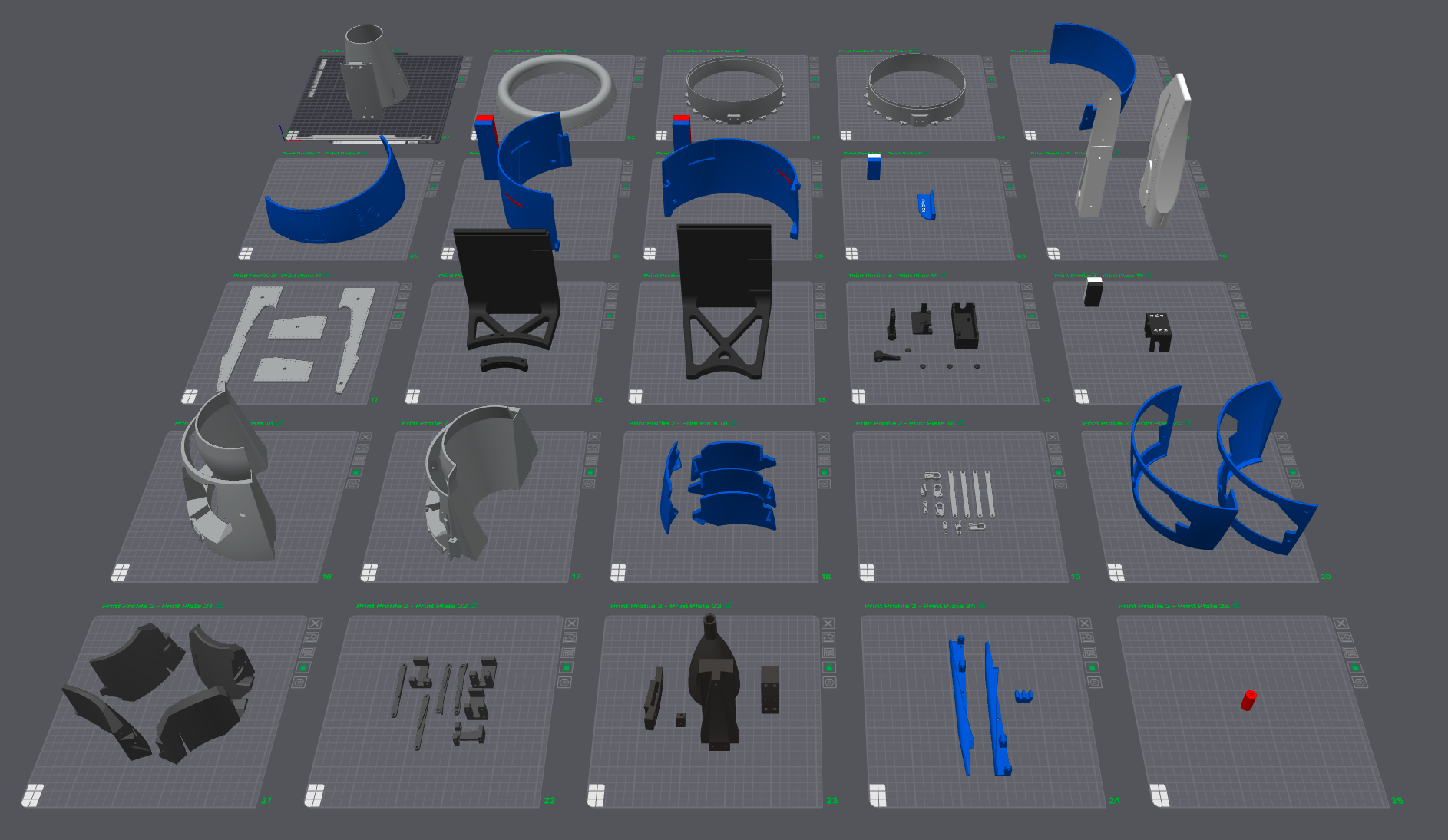

- Parts pre-orientated in slicer with recommended print settings.
- Arduino code.
-
3D PRINTED PARTS ONLY

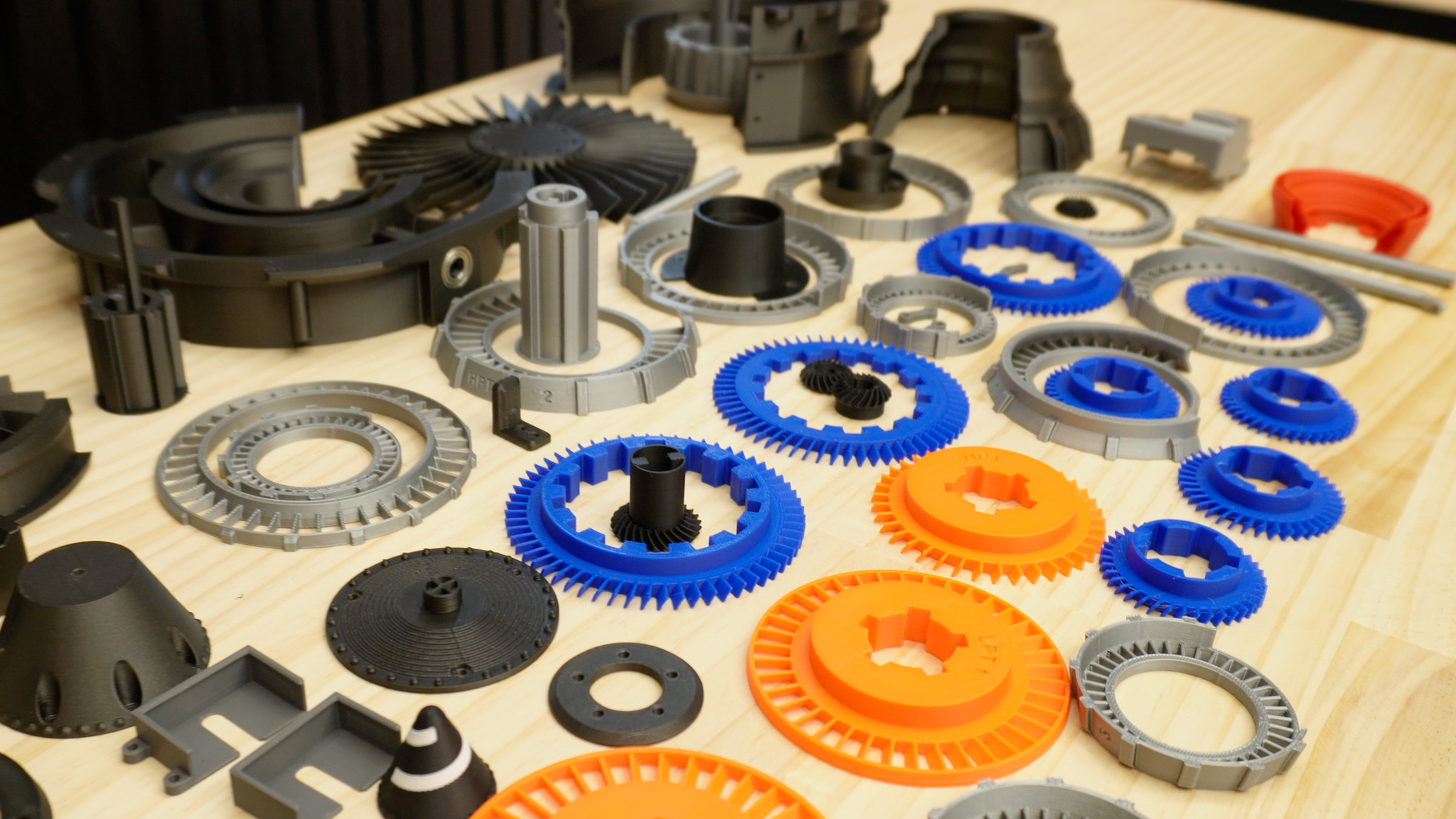

- All 3D Printed parts needed to build this model!
- Arduino Code made available to you.
- Step-by-step build guide.
Shipped to you anywhere in the world.
Please allow 2 weeks for fulfilment.
-
FULLY ASSEMBLED
A Fully Assembled Turbo Fan Model tested & shipped to you anywhere in the world.
Everything included to work straight out of the box. Minor assembly is required for shipping.
Please allow 3 weeks for fulfilment.

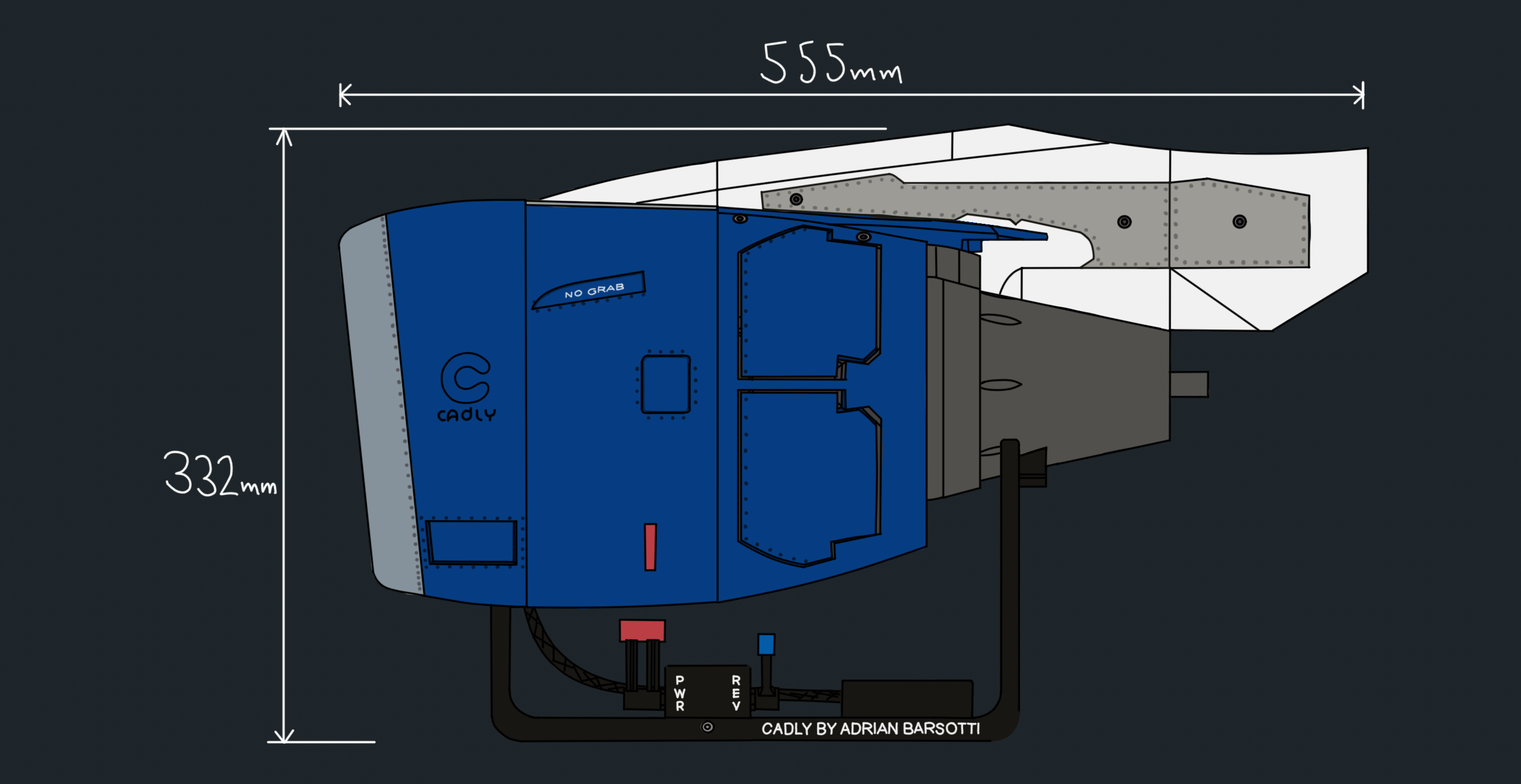

Dimensions.
What we offer.
-

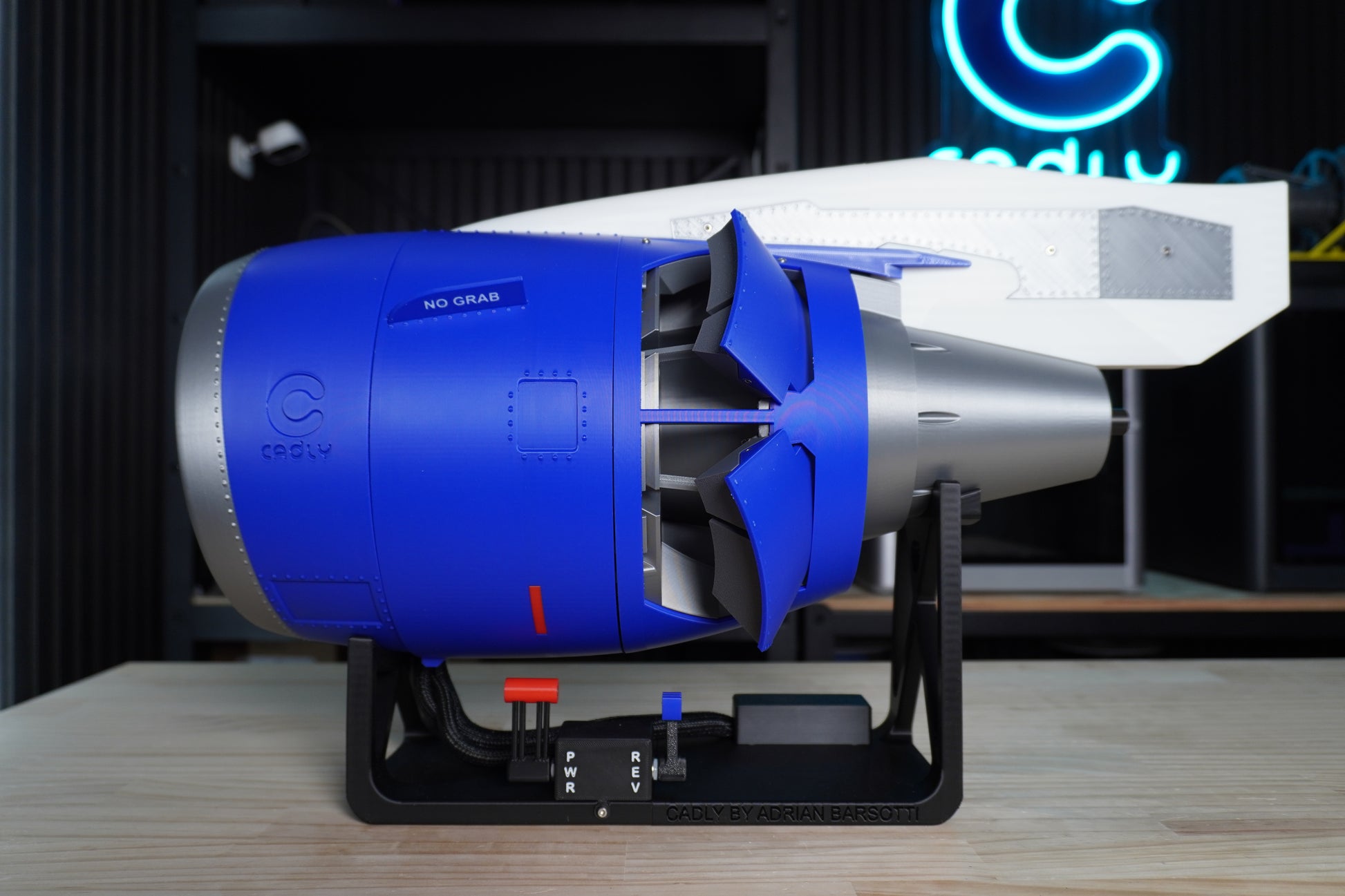

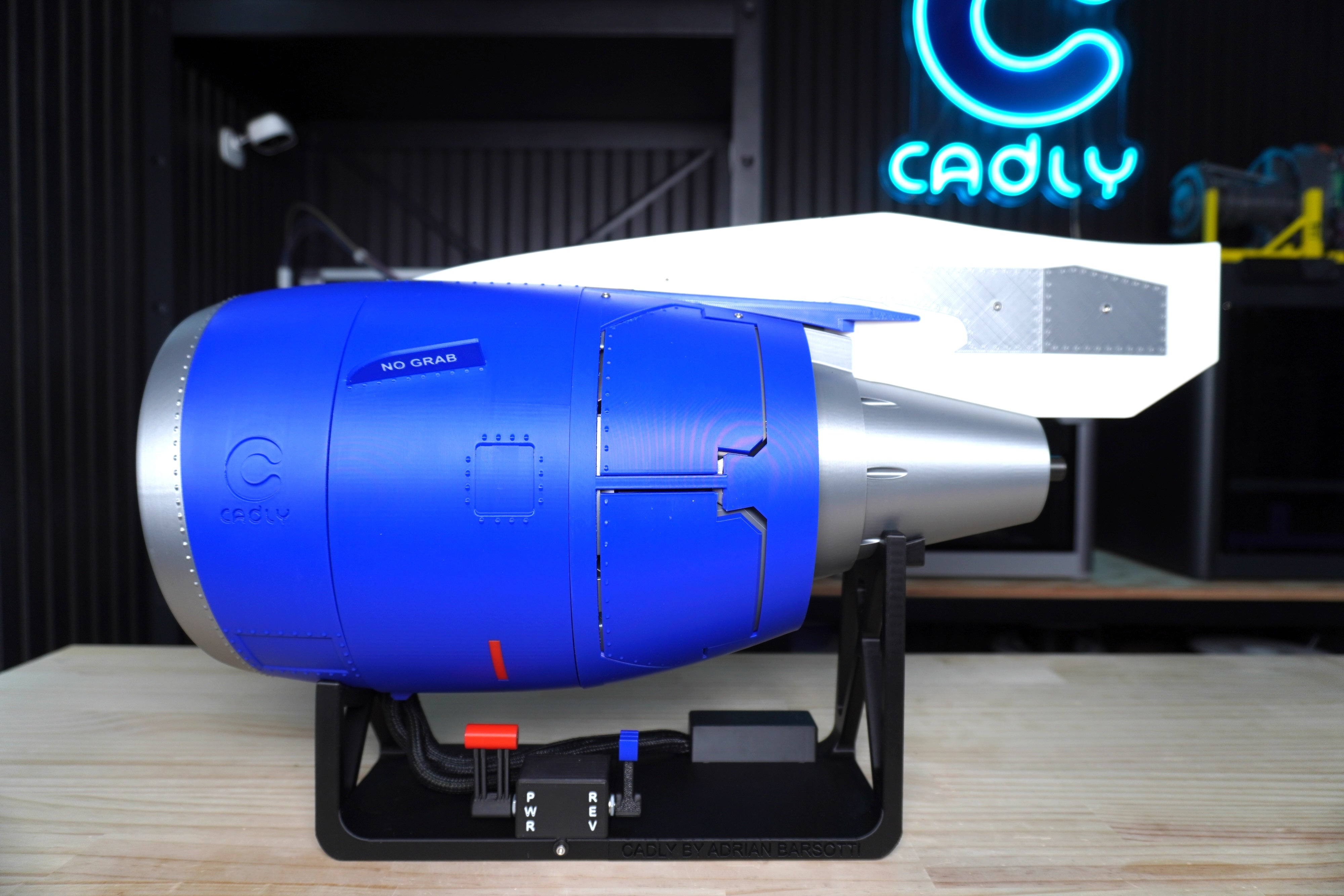

Pivot Door Thrust Reversing
Utilising 4x SG90 Servos, use the REV lever to open and close the doors for reverse thrust
-
Step-By-Step Build Guide
Follow the in-depth build to create your Turboprop.
-
Visible Compressors & Turbines
View the turbines & combustion chamber resembling a real Turboprop.
-
High Quality 3D Model
Exported at the highest resolution for ultimate print quality.
-
Educational
Perfect for Aviation Engineering with functional aspects resembling real-life engines.
